BAG WINDING MACHINES
Price depends on machine type and configuration
Lechita provides a wide range of bag winding systems. Our machines are available in the following configurations:
- On core
- Coreless
- Perforated bags
- Bags on tape
- Automatic change of film roll

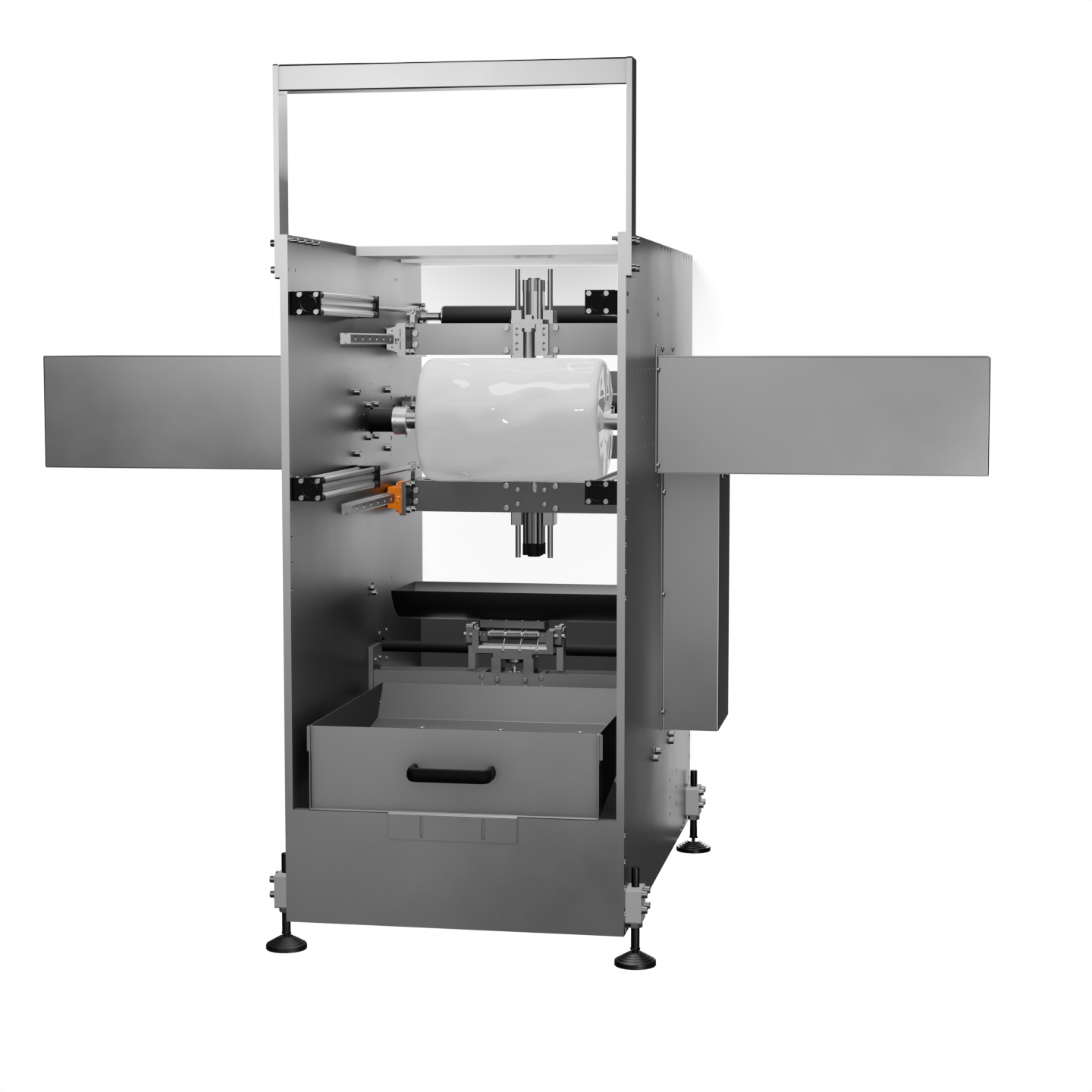

Perforated Bag Coreless On Fork Winder
The Lechita Coreless Automatic Winder winds perforated bags onto forks with high efficiency. An integrated buffer ensures smooth, continuous operation by allowing uninterrupted production. Once a roll is fully wound, it is automatically discharged into the collection drawer. The winder is compatible with all current Lechita bag-making machines.
Lechita’s bag winding machines are powered by advanced servo motors and guided by electronic distance sensors. The machine can work with bags on tape or perforation. Depending on the chosen configuration, roll changes can be fully automatic or performed manually by the operator.
Specification
- Power supply: 230 V, 50 Hz
- Power conumption: 1.5 kW
- Size (width, lenght, height): 1.7 m x 1.6 m x 1.5 m
- Max. tube width: 600 mm
General
- Single lane working mode only
- Can be trasfered to work with other machines
- Manual film roll change
Specification
- Power supply: 400 V, 50 Hz
- Power conumption: 1 kW
- Size (width, lenght, height): 2 m x 1.5 m x 1.5 m
- Max. tube width: 450 mm
General
- Single lane working mode only
- Compressed air required
- Automatic film roll change
Specification
- Power supply: 400 V, 50 Hz
- Power conumption: 1 kW
- Size (width, lenght, height): 2 m x 2.2 m x 1.4 m
- Max. tube width: 650 mm
General
- Single lane working mode only
- Compressed air required
- Manual film roll change
Specification
- Power supply: 400 V, 50 Hz
- Power conumption: 1 kW
- Size (width, lenght, height): 2 m x 2.2 m x 1.4 m
- Max. tube width: 700 mm
General
- Single lane working mode only
- Compressed air required
- Automatic or manual film roll change
